LED Base Types Explained: Find Your Fit

Replacing an old bulb with an LED is one of the fastest ways to save energy, but it only works when the base matches the socket. Mixing up base types leads to returns, frustration, or worse, a loose connection that can damage the fixture. This guide breaks down the most common LED base types you will find on store shelves and online listings. By the end, you will know exactly what the codes mean and how to identify the right bulb for any lamp or ceiling can.

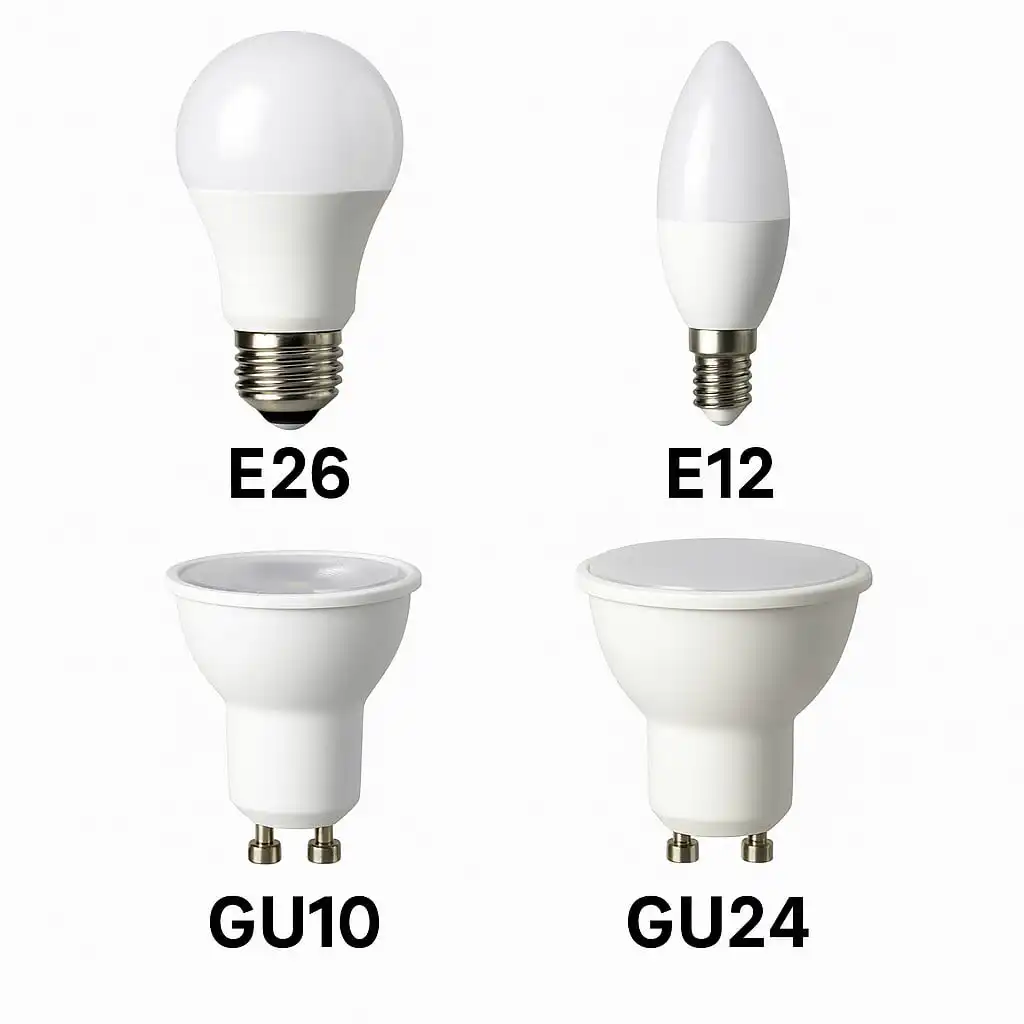

The Classic Screw Bases: E26 and E12

Most American households use the E26 medium screw base. “E” stands for Edison, and “26” indicates a diameter of twenty-six millimeters. Nearly every standard table lamp, floor lamp, and many recessed cans accept E26 bulbs. When an LED package says “standard base” or “A19 E26,” it will fit these fixtures.

For chandeliers, pendant clusters, and some night-lights, the smaller E12 candelabra base is common. Its slender profile pairs well with decorative bulbs that mimic candle flames or vintage torpedoes. If a fixture uses thin bulbs and has a narrow threaded socket, chances are it needs an E12.

Intermediate Screw Bases: E17 and E14

Less common but still important, E17 intermediate bases appear in some appliance bulbs, ceiling fans, and marquee-style strips. E14 is a European intermediate size sometimes found in imported light strings or novelty fixtures. Always measure or check the owner’s manual because E17 and E14 sockets can look deceptively similar to E12 at a glance.

Twist-and-Lock GU Bases for Spots and Floods

Track heads and some recessed cans use twist-and-lock GU bases. Two metal prongs slot into the socket, then twist to lock. The number indicates the distance in millimeters between the prongs. GU10 has pins ten millimeters apart and is frequently paired with short, stubby PAR16 or MR16 LED spots. GU24 uses thicker posts spaced twenty-four millimeters apart and appears in California Title 24 compliant fixtures because it discourages swapping LEDs for less efficient bulbs.

If a light requires a GU base, standard screw bulbs will not fit. Make sure the package lists the same GU code as your socket.

Bi-Pin Bases: MR16, G4, and G9

Accent lights, under-cabinet strips, and landscape fixtures often call for bi-pin LEDs. MR16 bulbs usually use a GU5.3 or GU5.5 bi-pin base, identified by two straight pins roughly five millimeters apart. These run on either twelve-volt low-voltage systems or line voltage, so read the transformer specs before buying.

Tiny puck lights inside glass cabinets often need G4 pins, while some decorative pendants and European imports use G9 looped pins. These numbers also specify the gap between the pins. A quick caliper check or visual comparison with your old bulb prevents ordering the wrong size.

Specialty Bases: R7s and Single-Contact Bayonet
Security floods and work lights sometimes use linear double-ended bulbs called R7s. Each end slips into a spring clip socket, so check length as well as base type. Vintage-style bayonet mounts such as BA15d or BA15s have pins that insert, then twist a quarter turn. They appear in classic cars, holiday blow-mold figures, and older string lights. LED replacements exist for these bases, but matching both pin spacing and overall bulb length is crucial.

How to Identify an Unknown Base

1. Remove the bulb safely and examine the end.
2. Count or measure the pins, threads, or diameter. A simple ruler works for common screw bases.
3. Look for markings on the old bulb or inside the socket. Manufacturers often print “E26,” “GU10,” or similar codes.
4. Consult fixture documentation if available, or take the bulb to a lighting store.

If you inherit a fixture with no bulb to reference, snap a clear photo of the socket interior. Lighting pros can usually identify the base from that image.

Adapters: A Helpful but Limited Solution

Base adapters exist, such as E26-to-E12 reducers, and can be useful when you already own the wrong bulb. Keep in mind that adapters add length, which might cause clearance issues in tight globes or enclosures. For high-heat or enclosed fixtures, adapters can affect heat dissipation, shortening LED life. Use them sparingly or opt for a direct-fit LED whenever possible.

Buying LEDs with Confidence

Armed with knowledge of common LED base types, you can match bulbs to fixtures quickly and avoid costly errors. Always confirm the base code on the package before adding LEDs to your cart. When in doubt, measure, photograph, and verify with a trusted retailer.
